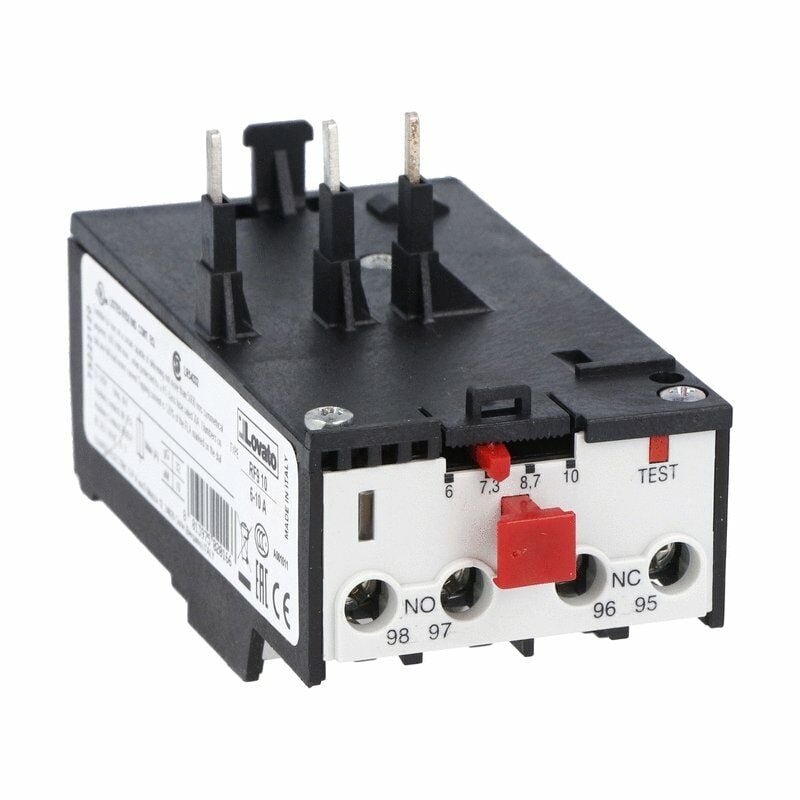

Lovato Elektrik 11RF933 Motor Koruma Rölesi
Kategori
Marka
Stok Kodu
LPAG94XGVA
Fiyat
50,80 EUR + KDV
*61,62 TL den başlayan taksitlerle!
2.316,48 TL
579,12 TL
%75
Lovato Elektrik 11RF933 Motor Koruma Rölesi
11RF933
11RF933
Motor koruma rölesi, faz hatası/tek faza duyarlı. Üç kutuplu (üç fazlı), manuel sıfırlama. BG06, BG09, BG12 mini kontaktörlere doğrudan montaj, 2...3,3A
Ürün tipi: Termik etkisi
Çalışma akışı [A]: 2.0...3.3
Sıfırlama modu: Manuel
Kontaktör serisi için: BG
Tip: Faz hatası / Tek faza duyarlı
Montaj tipi: BG06... BG09... BG12... üzerine direkt montaj
| Product designation | 11RF9 | |||
| Product type designation | Motor protection relay | |||
| General characteristics | ||||
| Number of poles | Nr. | 3 | ||
| Overvoltage category | III | |||
| Pollution degree | 3 | |||
| Frontal IP degree | IP20 | |||
| Type of release | Thermal | |||
| Protection fuse | ||||
| gG (IEC) | A | 10 | ||
| aM (IEC) | A | 4 | ||
| RK5 (UL) | A | 10 | ||
| Phase failure detection | yes | |||
| Reset mode | Manual | |||
| Power circuit characteristics | ||||
| Rated insulation voltage Ui IEC/EN | V | 690 | ||
| Rated impulse withstand voltage Uimp | kV | 8 | ||
| Rated operational voltage | V | 690 | ||
| Operational frequency | ||||
| min | Hz | 0 | ||
| max | Hz | 400 | ||
| Operational current Ie | ||||
| Operational current min | A | 2 | ||
| Operational current max | A | 3.3 | ||
| Tripping class | 10A | |||
| Test Button | yes | |||
| Trip indicator | yes | |||
| Terminals | ||||
| type | screw and washer | |||
| screw | M4 | |||
| width | mm | 9.8 | ||
| tool | Phillips 2 | |||
| Tightening torque for terminals | ||||
| min | Nm | 2.3 | ||
| max | Nm | 2.3 | ||
| min | Ibin | 1.7 | ||
| max | Ibin | 1.7 | ||
| Conductor section | ||||
| AWG/kcmil max | 10 | |||
| Auxiliary circuit characteristics | ||||
| Auxiliary contacts | ||||
| NO | Nr. | 1 | ||
| NC | Nr. | 1 | ||
| Auxiliary Rated insulation voltage Ui IEC/EN | V | 690 | ||
| Auxiliary Rated impulse withstand voltage Uimp | kV | 6 | ||
| Auxiliary Rated operational voltage | V | 690 | ||
| Operating current AC15 | ||||
| 24V | A | 3 | ||
| 120V | A | 3 | ||
| 240V | A | 1.5 | ||
| 380V | A | 0.95 | ||
| 480V | A | 0.75 | ||
| 500V | A | 0.72 | ||
| 600V | A | 0.6 | ||
| Operating current DC13 | ||||
| 125V | A | 0.11 | ||
| 600V | A | 0.22 | ||
| IEC Conventional free air thermal current Ith | A | 10 | ||
| Terminals | ||||
| Auxiliary circuit type | screw and washer | |||
| Auxiliary circuit screw | M3,5 | |||
| Auxiliary circuit width | mm | 8 | ||
| Auxiliary circuit tool | Phillips 1 | |||
| Conductor section | ||||
| Auxiliary circuit Flexible w/o lug max | mm² | 2.5 | ||
| Auxiliary circut Flexible c/w lug max | mm² | 2.5 | ||
| Tightening torque for terminals | ||||
| Auxiliary circuit min | Nm | 1 | ||
| Auxiliary circuit max | Nm | 1 | ||
| Auxiliary circuit min | Ibin | 0.74 | ||
| Auxiliary circuit max | Ibin | 0.74 | ||
| UL/CSA and IEC/EN 60947-5-1 designation | B600-P600 | |||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | 55 | ||
| Storage temperature | ||||
| min | °C | -55 | ||
| max | °C | 70 | ||
| Compensation temperature | ||||
| min | °C | -15 | ||
| max | °C | 55 | ||
| Max altitude | m | 3000 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| allowable | ±30° | |||
| Fixing | Direct mounting on BG06... BG09... BG12… | |||
| Weight | g | 116 | ||
| UL technical data | ||||
| Full-load current (FLA) for three-phase AC motor | ||||
| at 480V | A | 3.3 | ||
| at 600V | A | 3.3 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000106 - Thermal overload relay | |||
