Lovato Elektrik DM0T0060 Akım Trafosu
Kategori
Marka
Stok Kodu
28ZC9DHLG7
Fiyat
25,70 EUR + KDV
*31,17 TL den başlayan taksitlerle!
1.171,92 TL
292,98 TL
%75

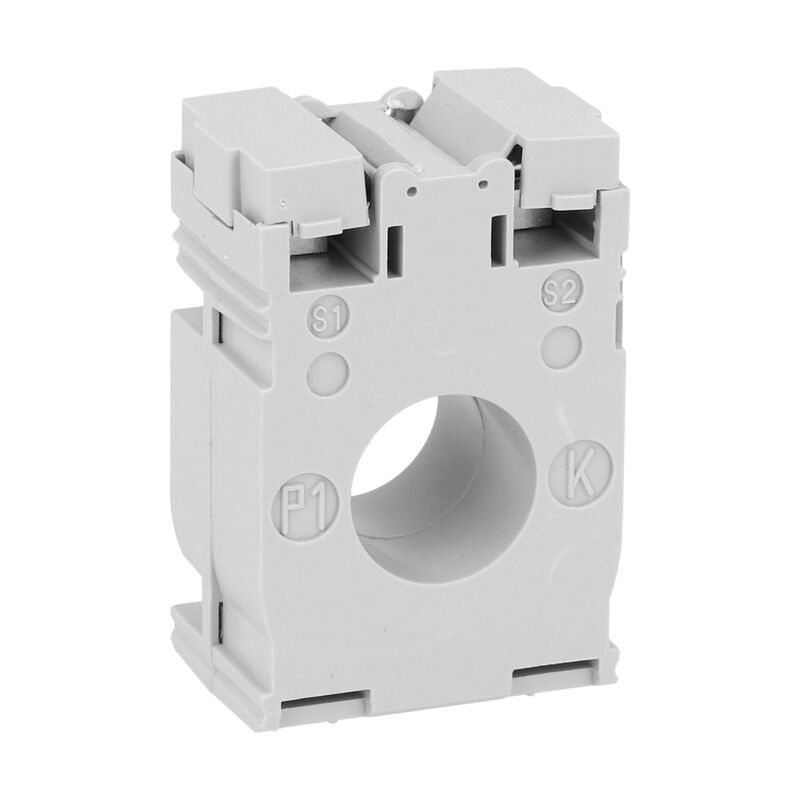

Lovato Elektrik DM0T0060 Akım Trafosu
DM0T0060
AKIM TRAFOSU, TEK ÇEKİRDEKLİ, Ø22mm KABLO İÇİN, 60A
- Ürün tipi: Akım trafoları
- CT tipi: Tek-çekirdekli
- Primer akım Ipn (/5) [A]: 60
-
Product designation Current trasformers Product type designation DM0T0060 Auxiliary supply Us Operational frequency min Hz 50 max Hz 60 Current inputs Primary current Ipn (/5) A 60 Secondary output current A 5 Overload withstand Ipn % 120 Burden cl. 1 VA 1.5 Insulations Rated insulation voltage Ui IEC/EN V 720 IEC rated short-time thermal current Ith Ith for s 40…60 IEC rated dynamic current Idyn Ith for s 2.5 Insulation dry type Class E Mechanical features Terminals type Screw Fixing DIN rail or by Screw Weight g 200 Ambient conditions Temperature Operating temperature min °C -25 max °C +50 Storage temperature min °C -40 max °C +80 Relative humidity % 90 Protection degree IP30 ETIM classification ETIM 8.0 EC002048 - Current transformer
