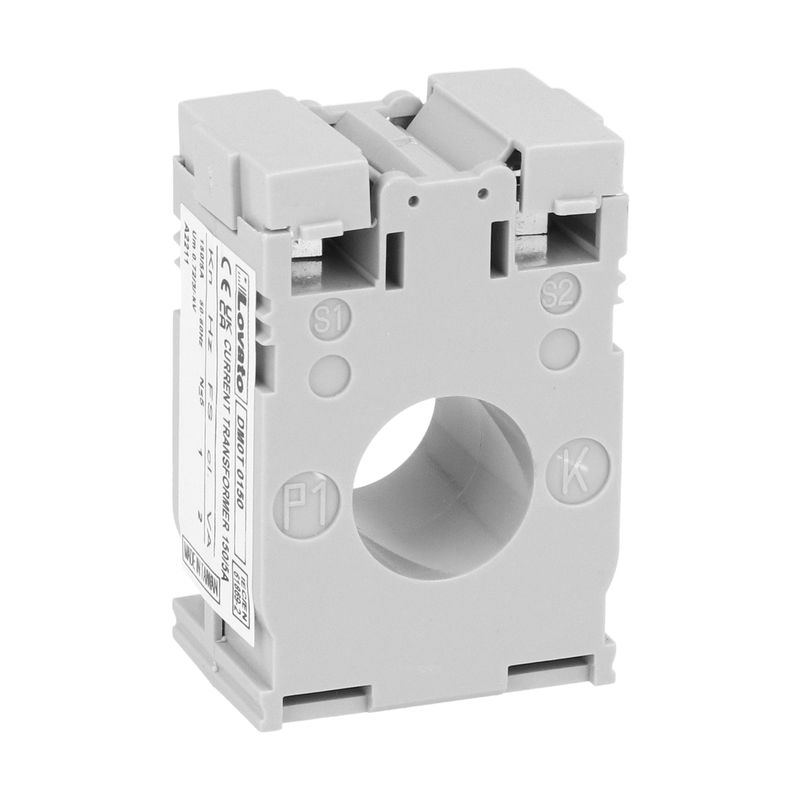

Lovato Elektrik DM0T0100 Akım Trafosu
Kategori
Marka
Stok Kodu
5YR5HWQHZW
Fiyat
25,70 EUR + KDV
*31,17 TL den başlayan taksitlerle!
1.171,92 TL
292,98 TL
%75
Lovato Elektrik DM0T0100 Akım Trafosu
DM0T0100
AKIM TRAFOSU, TEK ÇEKİRDEKLİ, Ø22mm KABLO İÇİN, 100A
- Ürün tipi: Akım trafoları
- CT tipi: Tek-çekirdekli
- Primer akım Ipn (/5) [A]: 100
| Product designation | Current trasformers | |||
| Product type designation | DM0T0100 | |||
| Auxiliary supply Us | ||||
| Operational frequency | ||||
| min | Hz | 50 | ||
| max | Hz | 60 | ||
| Current inputs | ||||
| Primary current Ipn (/5) | A | 100 | ||
| Secondary output current | A | 5 | ||
| Overload withstand Ipn | % | 120 | ||
| Burden | ||||
| cl. 1 | VA | 1.5 | ||
| Insulations | ||||
| Rated insulation voltage Ui IEC/EN | V | 720 | ||
| IEC rated short-time thermal current Ith | Ith for s | 40…60 | ||
| IEC rated dynamic current Idyn | Ith for s | 2.5 | ||
| Insulation dry type | Class E | |||
| Mechanical features | ||||
| Terminals type | Screw | |||
| Fixing | DIN rail or by Screw | |||
| Weight | g | 200 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +50 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +80 | ||
| Relative humidity | % | 90 | ||
| Protection degree | IP30 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC002048 - Current transformer | |||
